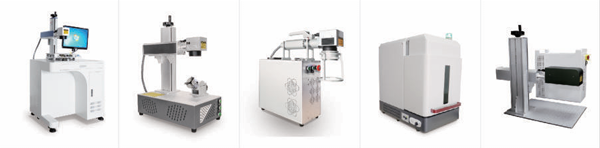

Mode | LM-D Desktop | LM-P Portable | LM-H Handheld | LM-PE Enclosed | LM-S Split |
| Advantages | With industrial computer | Small dimension, easy to move | Work on wall and big product | High safety | Smaller footprint |
| Work Area | 50–500 mm and above | 50–300 mm | 50–200 mm | 50–175 mm | 50–300 mm |
| Description | Industrial computer system; connect to PC/laptop and power to start | <40 kg, easy to move, laptop-operated | Detachable head for marking large or fixed objects | Fully enclosed, safe, eco-friendly with purifier | Separate head and host, compact and mobile |
| Fiber Laser | ✔ | ✔ | ✔ | ✔ | ✔ |
| MOPA Laser | ✔ | ✔ | ✔ | ✔ | ✔ |
| CO₂ Laser | ✔ | ✔ | ✘ | ✘ | ✔ |
| UV Laser | ✔ | ✔ | ✘ | ✘ | ✔ |
| Green Laser | ✔ | ✔ | ✘ | ✘ | ✔ |

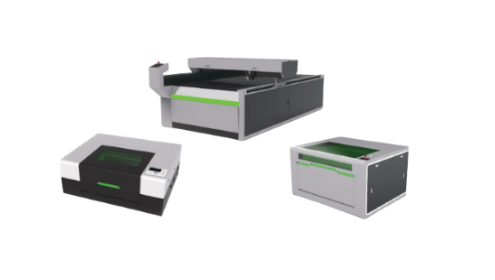

Product Description
Compact desktop design saves valuable workspace. This laser machine supports both engraving
and cutting, and comes equipped with a water chiller, lifting worktable, and other essential
features.
High-rigidity construction ensures excellent straightness and precision. Zero clearance between
the slide block and guide rail delivers smooth, quiet, high-speed operation with rapid
acceleration and deceleration.
Premium laser tube selection guarantees stable output and long service life. Laser tubes are
backed by a 300–540 day warranty, depending on the selected model.
| Model | LC-5030 | LC-1390 | LC-1610 | LC-1325 |
|---|---|---|---|---|
| Working Area | 500 × 300 mm | 1300 × 900 mm | 1600 × 1000 mm | 1300 × 2500 mm |
| Type | Closed | Closed | Closed | Open |
| Laser Power Supply | 40–500 W | |||
| Power Adjustment Range | 10%–100% | |||
| Output Central Wavelength | 1064 nm | |||
| Cooling Method | Water cooling | |||
| Positioning Accuracy | ±0.1 mm | |||
| Optional Upgrades | Auto-focus laser head, adjustable up-down worktable |
