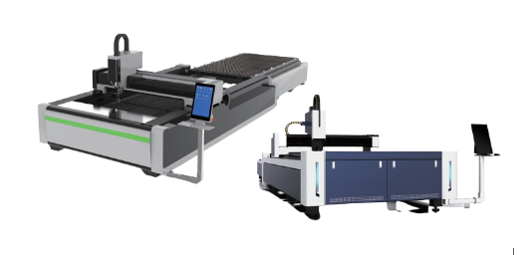

This cost-effective fiber laser cutting machine is designed for low-power applications (1000W–2000W) and is ideal for cutting and marking thin metal sheets. It delivers reliable performance while keeping operating costs low.
Built with a heavy-duty machine bed and a lightweight beam, it offers improved cutting speed, stability, and efficiency. Various configuration options are available, including laser source, control system, and laser head, allowing the machine to be tailored to specific requirements.
Working Area: 3000 x 1500mm
Laser Power Supply: 1000w, 1500w, 2000w
Cutting Ability: Carbon Steel 0.8-16mm, Stainless Steel 0.8-6mm
Position Accuracy: +-0.03mm
Voltage: 380V 3PH 50/60HZ
Product Description
The rapid exchange platform allows a 10-second changeover, reducing loading and unloading time and ensuring uninterrupted operation.
The platform can be controlled via an industrial computer, wireless remote, or an independent control panel located at the centre of the machine.
An intelligent control system with an integrated industrial computer ensures easy operation and fast, efficient execution within the cutting software.
Working Area: (3000x1500mm) (6000x1500mm) (4000x2000mm) (6000x2500mm)
Laser Power Supply: 2000w, 3000w, 6000w, 12 000w, 20 000w
Cutting Ability: Carbon Steel 1-80mm, Stainless Steel 1-70mm, Aluminium 1-60mm, Brass 1-20mm
Position Accuracy: +-0.03mm
Voltage: 380V 3PH 50/60HZ

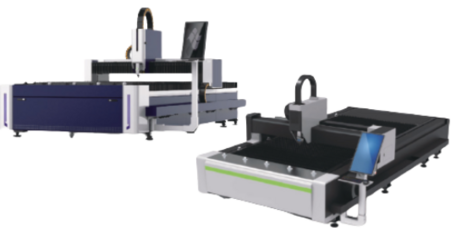

High-strength metal enclosure protects the operator from laser radiation while enabling efficient, eco-friendly fume and debris extraction. Dual surveillance cameras allow real-time monitoring of the cutting process and safe loading and unloading without stopping the machine. The 3015 model features a fast-exchange worktable with changeovers in as little as 10 seconds, improving efficiency, while a large, user-friendly control screen supports customized operation.
Working Area: 3000 × 1500 mm/4000 × 2000 mm/6000 × 1500mm
6000 × 2500 mm/12000 × 2500 mm
Laser Power Supply: 2000W, 3000W, 6000W, 12000W, 20000W, 30000W, 40000W, 50000W
Cutting Capacity: Carbon Steel: 1–80 mm S/Steel: 1–70 mm Aluminium:160mm Brass: 1–20 mm
The ground-rail large-format fiber laser cutting machine provides a versatile cutting solution for construction, automotive, and shipbuilding industries. Equipped with a high-power fiber laser and air-compressor compatibility, it enables efficient mass cutting while reducing operating costs. Advanced bus signal transmission ensures fast response, high precision, and stable performance, while the follow-up support system protects the pipes and minimizes damage.
Working Area: (12000x2500mm) (14000x4500mm)
Laser Power Supply: 12 000w, 20 000w, 30 000w, 40 000w, 50 000w etc.
Cutting Ability: Carbon Steel 1-80mm, Stainless Steel 1-70mm, Aluminium 1-60mm, Brass 1-20mm
Position Accuracy: +-0.03mm
Voltage: 380V 3PH 50/60HZ
